Commercial

Tranquility® (SH) Vertical Stack Chassis Replacement Series

HEATING CAPACITY
Coming soon COOLING CAPACITY
Coming soon AVERAGE COP
Coming soon AVERAGE EER
Coming soon

The Tranquility® (SH) Vertical Stack Chassis Replacement Series offers a seamless solution for upgrading legacy ClimateMaster products without cabinet removal or riser stack modifications. Utilizing environmentally-friendly R-454B refrigerant, the Tranquility SH ensures high efficiency and comfort while meeting ASHRAE 90.1 standards.

Find a Rep
  • Overview
  • Features
  • Specs
  • Resources

Overview

The Tranquility® (SH) Vertical Stack Chassis Replacement Series is designed for quick replacements of legacy ClimateMaster products without the need for cabinet removal or modifications to riser stacks. This series accommodates existing California Heat Pump (CHP) and ClimateMaster cabinets, thus eliminating the need for extensive renovations. Featuring environmentally-friendly R-454B refrigerant, the Tranquility SH delivers high efficiency and comfort while exceeding ASHRAE 90.1 standards. The units are available in sizes ranging from 3/4 ton (2.6 kW) to 3 tons (10.6 kW) and incorporate a unique double isolation compressor mounting system for quiet operation. Accessory kits are also available for various installations, enhancing compatibility and functionality.

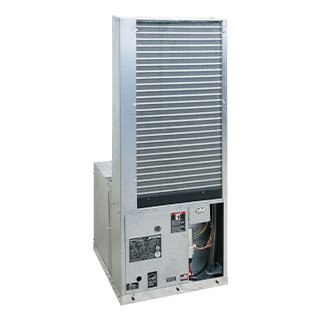

Tranquility SH Vertical Stack Chassis Replacement Series - Right

Features

Standard Features

  • Sizes 09 (3/4 ton, 2.6 kW) through 36 (3 ton, 10.6 kW)
  • Environmentally-friendly R-454B low-GWP refrigerant
  • High-efficiency rotary and scroll compressors
  • Unique double isolation compressor mounting for quiet operation
  • TXV metering device
  • 816-817 series “S”, “M” and “P” controls
  • TSM-TSL sizes 09-12 Rev A-B Chassis Replacement (19” x 19.25”)
  • Easy-to-clean rust-prohibitive stainless-steel drain pans
  • UltraQuiet sound-attenuation package
  • Return-air sensor

Configurable Options

  • 816-817 series “S”, “M” and “P” controls
  • TSM-TSL sizes 09-12 Rev A-B Chassis Replacement (19” x 19.25”)
  • Easy-to-clean rust-prohibitive stainless-steel drain pans
  • UltraQuiet sound-attenuation package
  • Return-air sensor
  • Motor harnesses for PSC motors
  • Motor harnesses for Intelligent Constant Volume (CV) EC motors
  • Motor harnesses for Entry-level Constant Torque (CT) EC motors
  • Deck kits for external blower motor and controls replacements in the existing cabinet
  • Accessory sheet metal block offs to allow for stock, off-the-shelf chassis conversions

Performance Specifications

Heating Air Flow Rate
Coming soon
Cooling Air Flow Rate
Coming soon
Full Load WLHP Heating Source Flow Rate
Coming soon
Full Load WLHP Cooling Source Flow Rate
Coming soon
Full Load WLHP Heating Capacity Range
Coming soon
Full Load WLHP Cooling Capacity Range
Coming soon
Full Load WLHP Heating COP Range
Coming soon
Full Load WLHP Cooling EER Range
Coming soon
Full Load WLHP Heating COP Avg
Coming soon
Full Load WLHP Cooling EER Avg
Coming soon
Refrigerant
R-454B

Resources

97B0170N01 thumbnail

97B0170N01
SH IOM
Read More
LC3041 thumbnail

LC3041
SH Product Catalog
Read More
