Low GWP Vertical Stack Units: SM Family Series, shown

Low GWP Vertical Stack Units – 0.5 to 3 tons

Tranquility® (SM) Vertical Stack Series

The Tranquility® (SM) Vertical Stack Series offers an innovative, labor-saving solution for spaces where individual, quiet control of the heating and cooling systems is important. The Tranquility SM offers a proven solution that is designed and manufactured in America, exceeds ASHRAE 90.1 efficiencies, and uses R-454B low Global Warming Potential (GWP) refrigerant making it an extremely environmentally friendly space conditioning product solution. Featuring a contractor/technician friendly design, the Tranquility SM has a compact footprint that minimizes its impact on salable space, maximizes comfort levels of occupants, and has been proven as a preferred system in thousands of multi-story building applications across North America.

FEATURES

  • Sizes 06 (1/2 ton, 1.8kW) through 36 (3 ton, 10.6 kW)
  • Environmentally-friendly R-454B low-GWP refrigerant
  • High-efficiency rotary and scroll compressors
  • Exceeds ASHRAE 90.1 efficiencies
  • Removable chassis allows staged installation and ease of maintenance
  • Coaxial heat exchanger
  • Galvanized-steel cabinet construction
  • Chassis rests on rubber-grommeted isolated condensate pan for vibration reduction
  • Unique double-isolation compressor mounting for quiet operation
  • TXV metering device
  • Cabinet construction for unit or remote-mounted controls
  • Eight standard safety features
  • Microprocessor controls with on-board fuse and emergency shutdown
  • Integrated drain pan with condensate-overflow sensor
  • Field-convertible supply air on all sides and the top
  • Field-convertible riser supply, return, and condensate locations on the left, right, or back sides
  • CXM2 Communicating Controls:
    • Multiple communication pathways for unit access and diagnosis:
      • Cloud-based remote monitoring via Wi-Fi communicating color-touchscreen thermostat
      • Connect directly to the system with a handheld service tool
    • Provides real-time unit operating conditions
    • Reduces startup, commissioning, and service time by providing key system temperatures electronically
    • Captures operating conditions in the event of a safety shutdown

OPTIONS

  • High-efficiency EC blower motors:
    • Intelligent Constant Volume (CV) EC motors for ultimate airflow control
    • Entry-level Constant Torque (CT) EC motors provide efficiency at a value
  • DXM2.5 Advanced Communicating Controls:
    • Includes all of the CXM2 control features
    • Dial in desired airflows for (CV) EC blower motors
  • vFlow® modulating water flow:
    • Modulates water flow to maintain a water-temperature differential
    • Changes the operation to modulate to a leaving-water temperature during extreme entering-water temperatures
    • Provides ultimate variable water-flow control
    • Functionally operates as both a water-flow regulator and a water close-off valve
  • Two-way motorized water valves that prevent water flow through the unit when it is not in operation, increasing system pumping efficiency (fail-open or fail-closed options)
  • Three-way motorized water valves that allow continuous water flow through the water loop, reducing pressure drop when the unit is not in operation (usually applied on the top floor of a system)
  • Hybrid Hydronic Heating
  • 2-inch filter rail to support higher indoor air-quality filters
  • BACnet, Modbus, and Johnson Controls N2 compatibility options for Building Management Systems (BMS)
  • Factory-configured supply-air openings with or without dust protection
  • Full-port shut-off valves with memory stop, for supply and return risers.
  • Unit-integrated power disconnect
  • Internally-mounted water pump for single-pipe systems
  • RIB relay (sizes 06-18) box for quiet contactor closer
  • UltraQuiet sound-attenuation package
  • Refrigerant Detection System (RDS) (optional for all sizes)
  • Field quick-connect thermostat whips in 15-, 25-, 35-, and 50-foot lengths
  • Factory-mounted high-density rubber isolation pad
  • Easy-to-clean, rust-prohibitive stainless-steel drain pans
  • Extended-range insulation for geothermal applications
  • Autoflow regulators that limit water flow to the unit, preventing system overpumping

ACCESSORIES

  • Copper risers:
    • Swedged ends are ready for a quick drop-in connection when brazing is used
    • End treatment ready for crimped (torch-less) style connections
  • Units that stand prevent clearance issues with tall baseboards
  • Single, Double, and Double deflection with opposed dampers supply-air grilles
  • Fresh-air frame kit for connection to outdoor air ducting
  • Flush-mounted return-air panel (L style) with fixed frame and removable panel for easy chassis access/removal:
    • Available in Bright White or Polar Ice paint colors
  • Attractive return-air panel with hinged access door (G style):
    • Key Lock Option
    • Available in Bright White or Polar Ice paint colors
  • Stainless-steel braided-hose kits for connection from piping risers to the chassis
  • Selection of thermostats, including programmable, Wi-Fi, and color touchscreen
  • Filters - 1-inch (Merv 8 or 11) or 2-inch (Merv 8 or 13)

Tranquility® (SM) Vertical Stack Series

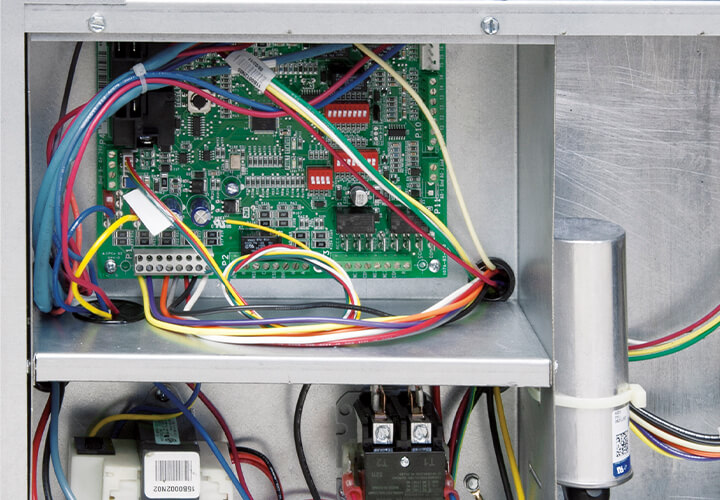

Control Board

Tranquility (SM) Vertical Stack Series: Close Up Look - Control Board

Advanced digital controls with Remote Service Sentinel. Shown with optional DDC controller. Optional DXM2.5 Advanced Communicating Controls also available.

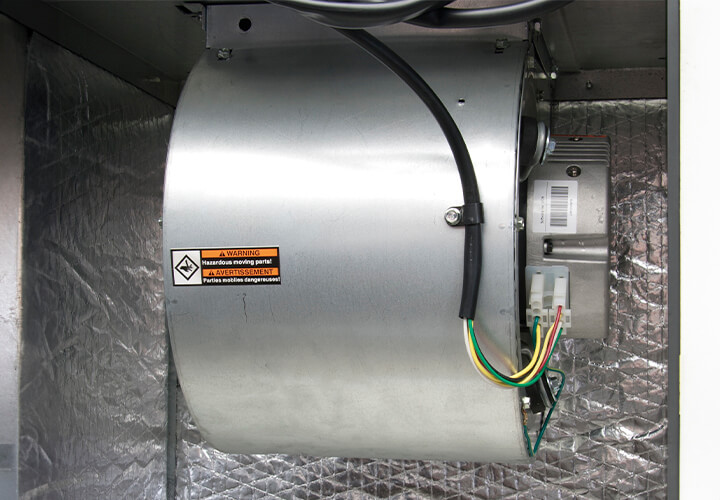

Blower Motor

Tranquility (SM) Vertical Stack Series: Close Up Look - Blower Motor

Torsion-flex blower motors SM09-12.

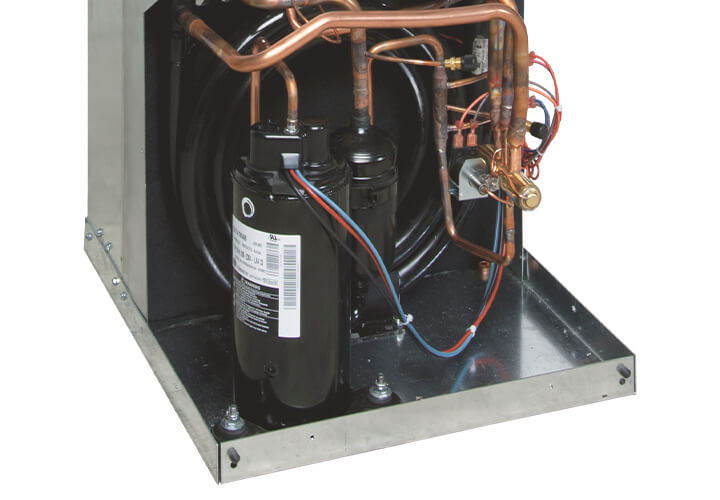

Chassis

Tranquility (SM) Vertical Stack Series: Close Up Look - Chassis

Exclusive dual compressor vibration isolation lowers vibration and reduces noise for quiet operation. Removable chassis allows staged installation and ease of maintenance/service once installation is complete.

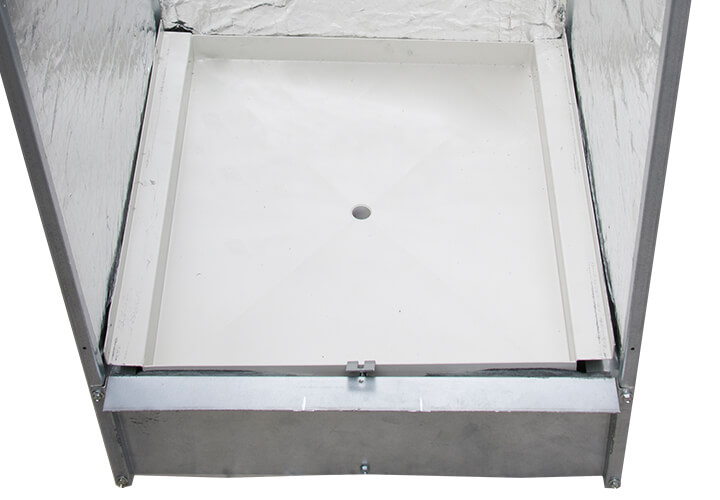

Drain Pan

Tranquility (SM) Vertical Stack Series: Close Up Look - Drain Pan

Integrated drain pan with condensate overflow protection. Optional stainless steel insulated drain pan.

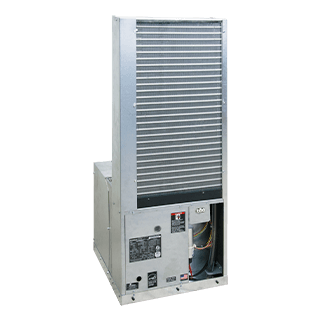

Tranquility® (SH) Vertical Stack Chassis Replacement Series

The Tranquility® (SH) Vertical Stack Chassis Replacement Series offers an innovative, labor-saving solution for spaces where individual, quiet control of the heating and cooling system is important. The Tranquility SH consists of replacements for multiple existing chassis series, including: 816, 817, TRM, and TSM/TSL Rev A-C. Using R-454B, a low-GWP refrigerant, the Tranquility (SH) not only protects the environment but also delivers unprecedented comfort, efficiency, and reliability.

FEATURES

  • Sizes 09 (3/4 ton, 2.6kW) through 36 (3 ton, 10.6 kW)
  • Environmentally-friendly R-454B low-GWP refrigerant
  • High-efficiency rotary and scroll compressors
  • Removable chassis allows staged installation and ease of maintenance
  • Unique double-isolation compressor mounting for quiet operation
  • TXV metering device

OPTIONS

  • 816-817 series “S”, “M” and “P” controls
  • TSM-TSL sizes 09-12 Rev A-B replacement chassis (19” x 19.25”)
  • Easy-to-clean rust-prohibitive stainless-steel drain pans
  • UltraQuiet sound-attenuation package
  • Return-air sensor
  • Motor harnesses for:
    • PSC motors
    • Intelligent Constant Volume (CV) EC motors
    • Entry-level Constant Torque (CT) EC motors

ACCESSORIES

  • Deck kits for external blower motor and controls replacements in the existing cabinet
  • Accessory sheet metal block offs to allow for stock, off-the-shelf chassis conversions
  • Hose adapter fittings for field compatibility
